VЯitty Modeleя User Guide

Modeleя User Guide

Log On / Log Off

Enter your user name and password. The Logon button will then appear.
Click the Logon button.

If your user name and password are correct:

Log Off button appears

Hollow person icon at top right changes to green solid person icon

Model type buttons appear

Click the Log Off button to log off.

User Account

Create a free VЯitty cloud account:

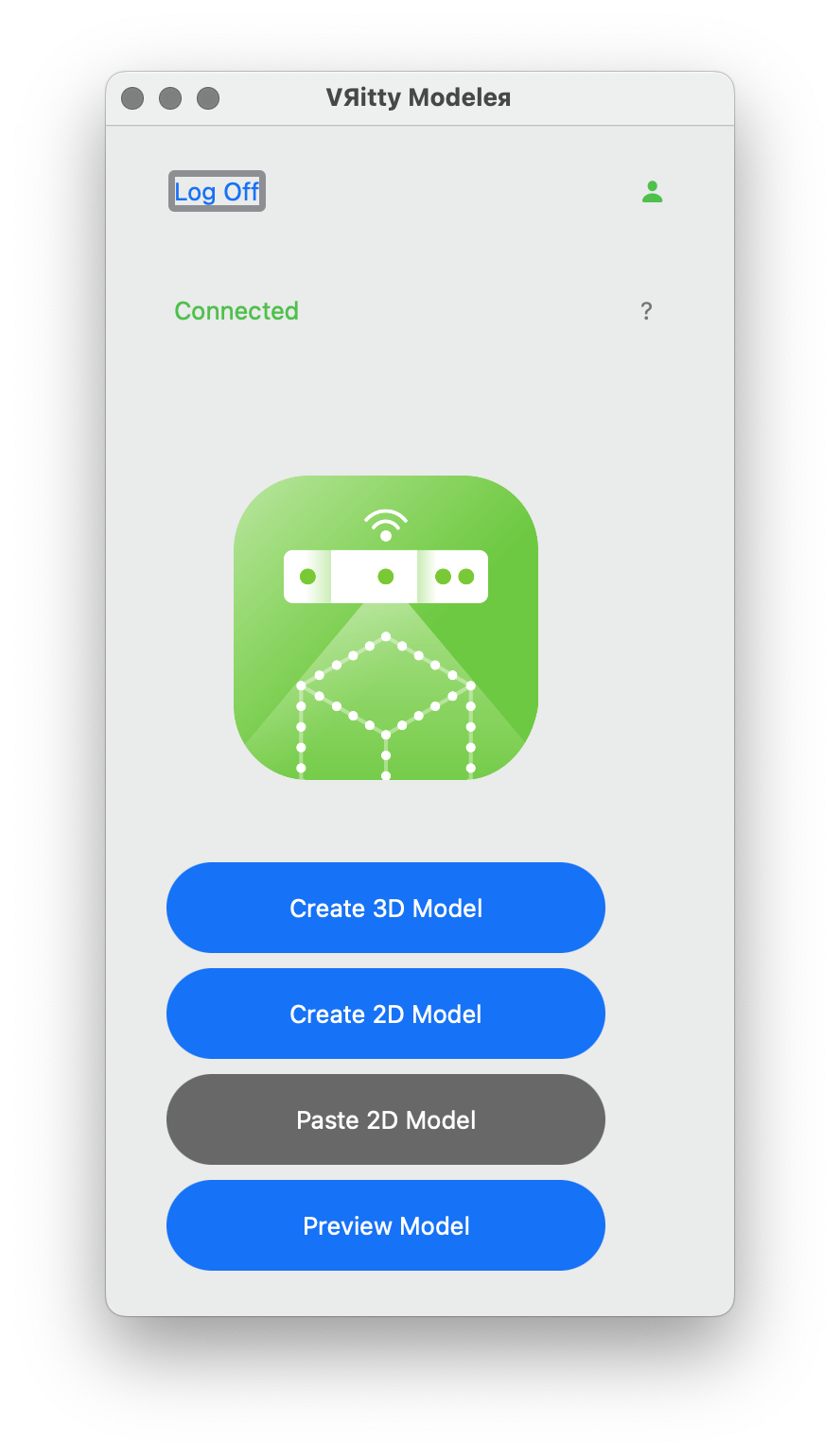

Create Model

Create 3D Model
Select a folder containing files created by VЯitty Scanneя

Create 2D Model
Select a image from a JPG, PNG, or HEIC file

Paste 2D Model
Enabled when there is a image on the clipboard

Preview Model
Select a USDZ file from your device

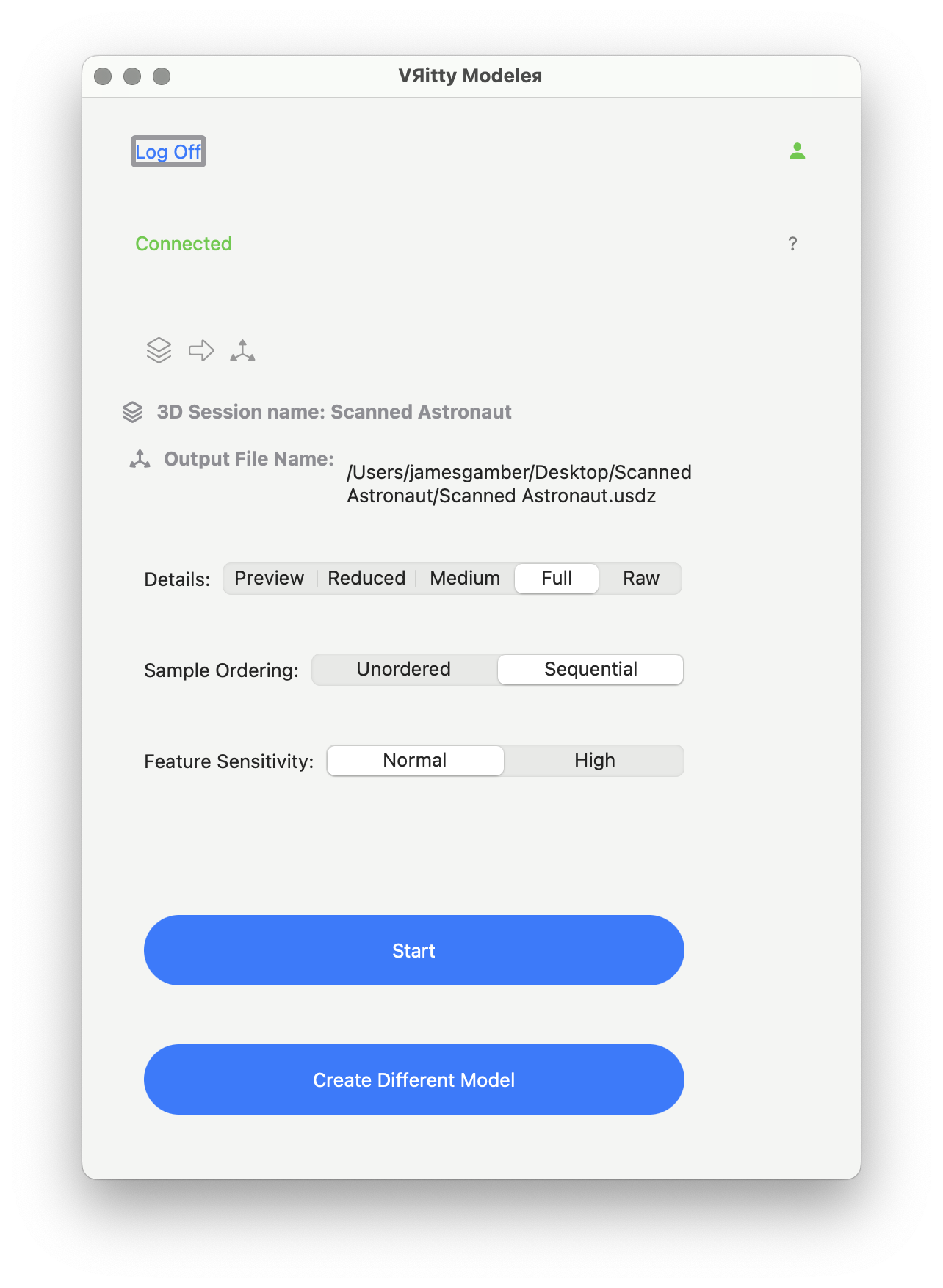

3D Model Options

Select amount of detail used
Select sample ordering. VЯitty Scanneя sequentially numbers scan files.
Select sensitivity to depth changes.
Tap Create Model

The initializing status appears and may not change for a while.
The modeling starts and a progress bar appears.
The time required may be quite long, depending on the speed of your Mac.

Finally the resulting USDZ 3D model will be displayed.

Sample VЯitty Scanneя data for testing with Modeleя.

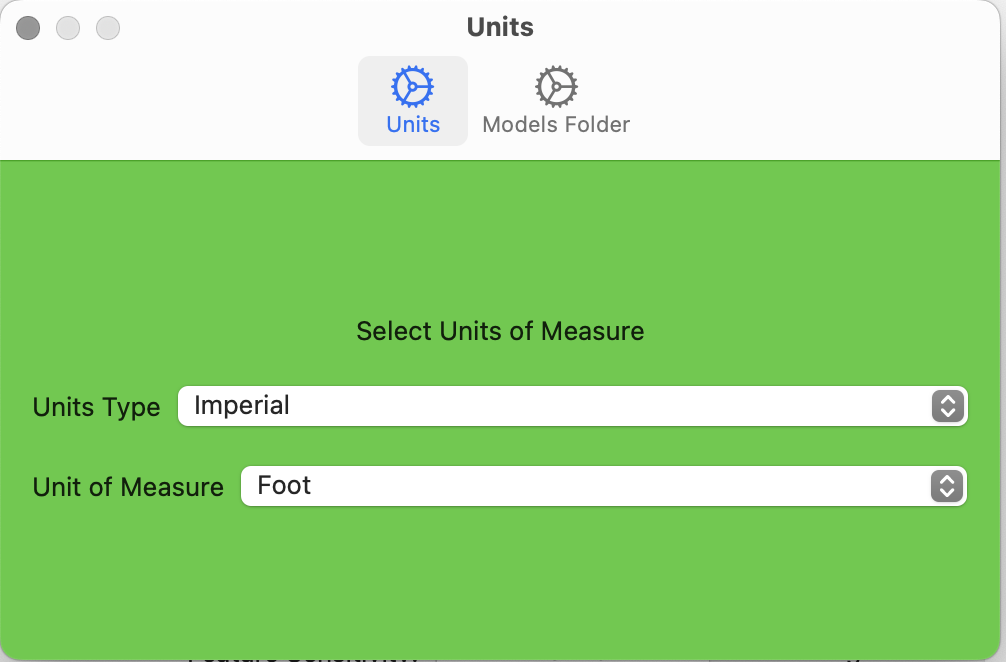

Preferences

Adjust the settings for Units of Measure or default Model output folder

On MacOS access preferences from app Settings menu. On others, access preferences from the Settings button.
